2000W-2500W BLDC  Motor Swing Arm Assembly for electric scooter, electric motorcycle  High efficiency with large output power/torque
This 2000W-2500W  BLDC Motor Swing Arm Assembly can speed up your  Green  scooter or motorcycle to reach 75km/h(84V version)   and 95Km/H(96V version)  in speed. And the option parts Tyre and Caliper are available.

2000W-2500W continuour Power ,at Peak 5000W  : Swing arm bldc Motor Assembly   84V version
2500W Mid Drive Motor Assembly   90V version
Motor Brand:GM motor   Customized Brand.
Motor Type: DC Brushless Permanent Magnet Motor
Motor Design: Mid Drive with Single Axle
Magnet Height: 70mm, 40pcs, 5 pole pairs
Diameter of Stator: 120mm
Power (Continuous): 2000W -2500W ,Peak power 5000Watt(at acceleration)
Rated Voltage: 84V ,Optional 96V
Rotating: 2900rpm no-load, 4500rpm max.(84V version )
Rotating:3500rpm no-load, 5000rpm max.(90V version )
Matched Wheel: 12inch Wheel
Max. Speed: 75km/h. – 85Km/h  :Standard with  SCLS Series  controller
Max Torque: 190 N.m (at Gear Ratio 1:5)
Gear Ratio: 1 : 5
Max Efficiency: 90.2%
Continuous Battery Current: 35A (72V)  / 32A (90V)
Peak Battery Current: 60A (72V)  / 65A (90v)
Max. Peak Phase Current: 250A
Hall: 1 set Hall Sensor
Waterproof Grade: IP54
Color: Black  or Silver(Optional)
Controller:SCLS Controller, 350A peak phase current , specify Peak current  when Ordering
Option Function: Brake : Large Disc with Caliper,  Special Tyre.(Call)

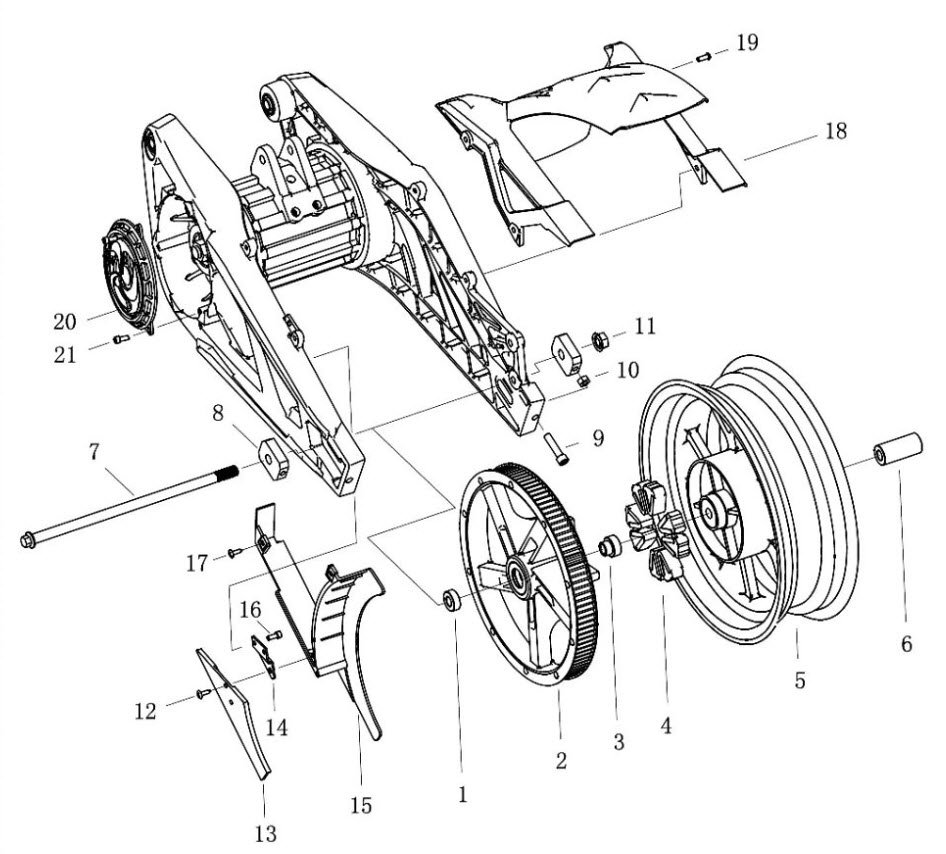

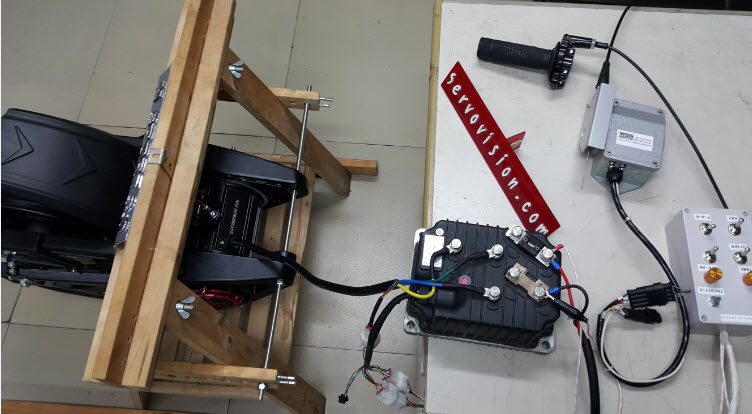

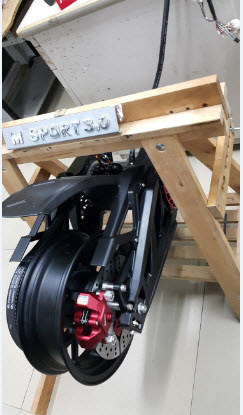

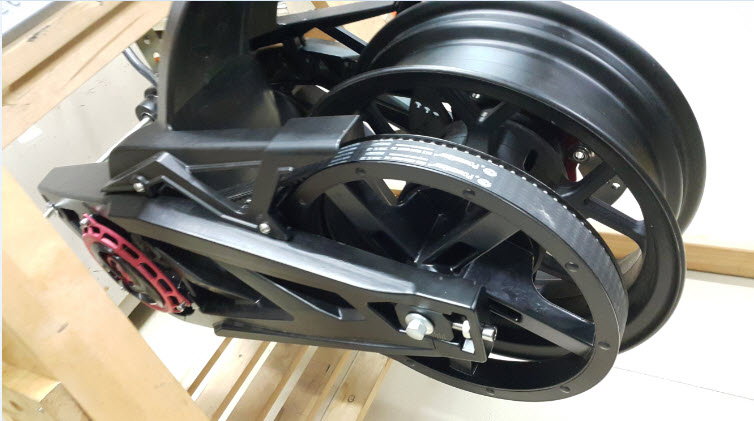

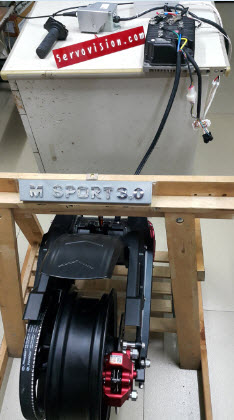

2000W-2500W  BLDC Motor Swing Arm Assembly Pictures ,see attached photo  by Servovision.com
